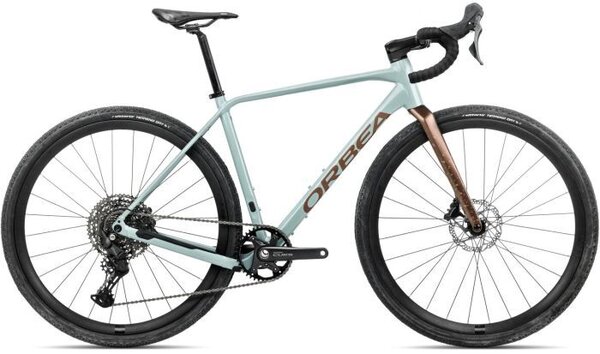

Orbea Terra H45 1x
$2,999.99
Details
Freedom lies in uncharted paths, where vastness is the challenge and each pedal stroke takes you deeper into a labyrinth of possibilities. It’s not just a ride; it’s an invitation to explore nature’s endless horizons.
TIRE CLEARANCE
Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.
DRIVETRAIN COMPATIBILITY
Designing our frame from the ground up gave us the opportunity to tackle a problem which exist in many gravel frames. Namely giving a range of drivetrain options without compromising tire clearance
Specs
| Frame | Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system |
|---|---|
| Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1.5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Wheels | Alloy, Tubeless, 700c, 21c |
| Tires | Vittoria Terreno T30 fine loose Gravel 700x40c |
| Crankset | Shimano Cues U6040 40t |
| Cassette/Freewheel | Shimano CS-LG400 11-50t 11-Speed |
| Chain | Shimano LG500 |
| Shifters | Shimano U6030 |
| Rear Derailleur | Shimano Cues U6000 GS Shadow |
| Brakes | Shimano RS405 Hydraulic Disc |
| Handlebars | OC Gravel GR31-R, Rise 15, Reach 70, Drop 110 |
| Tape/Grips | Orbea Eva |
| Stem | OC Road Performance RP23, -5º |
| Saddle | Fizik Terra Argo X7 Aluminium Rail 150mm |
| Seat Post | SP 0.2 Carbon, 27.2mm, Setback 20 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Blue/Copper / X-Small | 8434446820243 | 191972994678 | 210000039877 |
| Infinity Green/White / Small | 8434446099359 | 210000038883 |
