Details

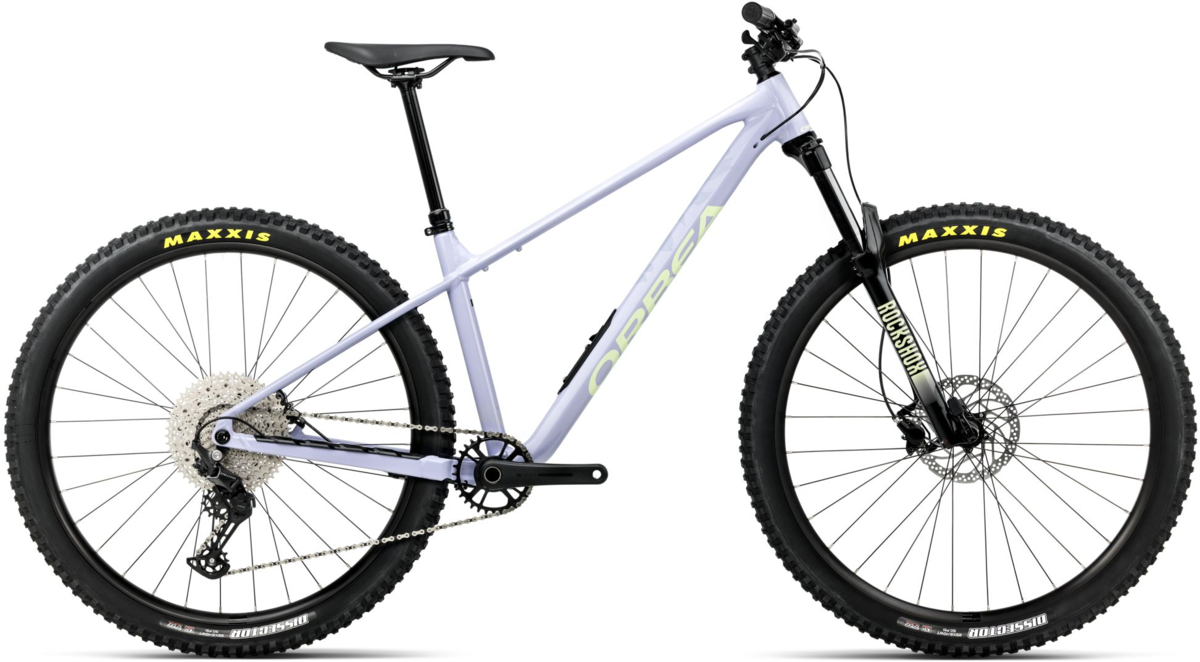

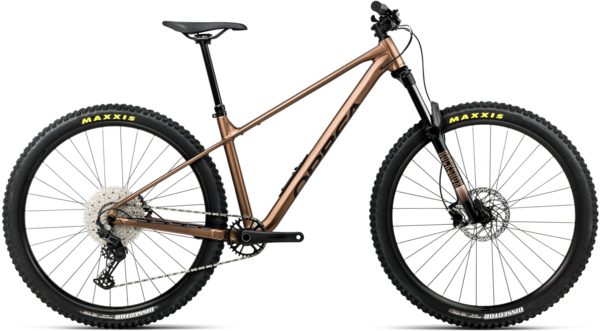

Laufey is our hardtail trail bike, eager to take on any party lap or forest loop you can think of.

Sizes:
Frame Size	Small	Medium	Large	X-Large
Seat Tube (C-T) (mm)	380	415	430	460
Top Tube (EFF) (mm)	572	598	625	652
Head Tube (mm)	95	105	120	130
Chainstay (mm)	440	440	440	440
BB Drop (mm)	65	65	65	65
BB Height (mm)	310	310	310	310
Wheelbase (mm)	1181.8	1210.1	1240.6	1269.9
Head Angle (degree)	64.5°	64.5°	64.5°	64.5°
Seat Angle (degree)	77°	77°	77°	77°
Rake (mm)	44	44	44	44
Standover (mm)	440	440	440	440
Reach (mm)	427	451	475	500
Stack (mm)	633	642	655.5	664.5
Fork Length (mm)	554	554	554	554

Specs

Frame	Orbea Laufey Hydro Triple Butted 29" Boost 12x148 ISCG 05
Fork	RockShox Recon RL 15X110 Boost Solo Air 140mm
Wheels	Alloy, Tubeless, 29", 29c, 32H
Tires	Maxxis Dissector 2.40" 60TPI Rigid EXO/TR
Crankset	Forged alloy, 32t
Shifters	Shimano Deore M6100
Rear Derailleur	Shimano Deore M6100 SGS Shadow Plus
Cassette/Freewheel	Sun Race 11-51t 12-Speed
Chain	KMC X12
Brakes	Shimano MT201 Hydraulic Disc
Handlebars	OC Mountain Control MC30, Rise20, Width 800
Tape/Grips	OC Lock On
Stem	Alloy 3D forged, 35mm interface, -7º
Headset	Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost	OC Mountain Control MC22, 31.6mm, Dropper
Saddle	Selle Royal 2058 DRN
Pedals	Sold separately
Accessories & Extras	Seatpost Lever: Shimano SL-MT500

* Subject to change without notice.
